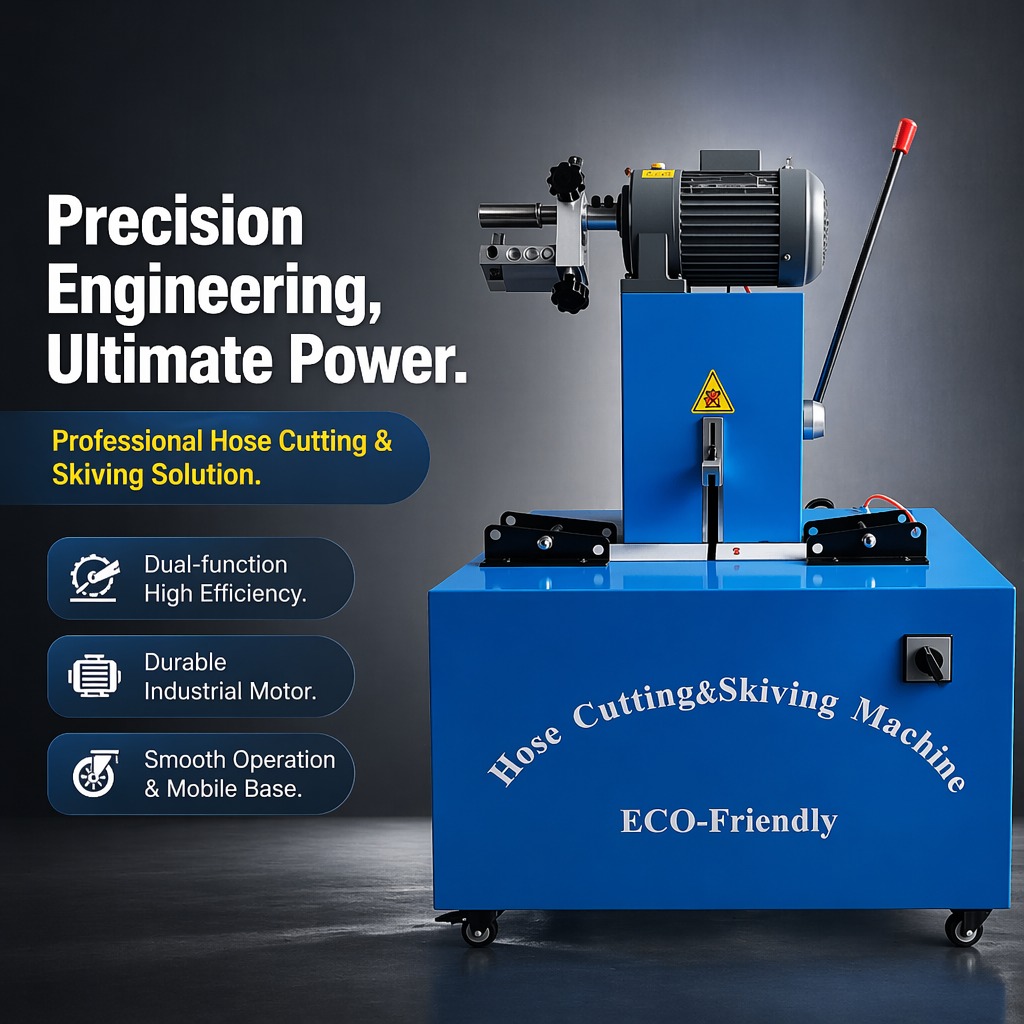

Product: Hose Cutting and Skiving Machine (Dust-Free Type) Model: QB-51

Key Specifications:

• Hose ID Range: 1/8" – 2" (4SN)
• Skiving Mold: 10 Sets
• Voltage / Motor: 380V / 3KW or 220V / 4KW
• Saw Blade Material: HSS (High-Speed Steel)
• Cutting Speed: 2850 rpm/min
• Double-edged Saw Blade: φ350 × 2.8mm
• Machine Dimensions: 780 × 560 × 1100 mm
• Net Weight: 110 KG
• Internal Skiving Mold: Optional

Features:

• Integrated 2-in-1 design combining hose cutting and skiving functions — saves equipment cost and workspace
• Dust-free operation system ensures a clean working environment, protecting operator health
• Two power configurations available: 380V/3KW for industrial use, 220V/4KW for standard workshop power
• HSS double-edged blade (φ350×2.8mm) delivers clean, precise cuts at 2850 rpm/min
• 10 sets of skiving molds covering full range 1/8"–2" 4SN hoses
• Internal skiving mold available as optional accessory
• Sturdy construction at 110KG for stable operation under heavy-duty use

Application: Designed for hydraulic hose assembly production lines requiring both cutting and skiving operations. Ideal for hydraulic hose manufacturers, construction equipment maintenance facilities, and industrial hose workshops where a clean working environment is a priority.
