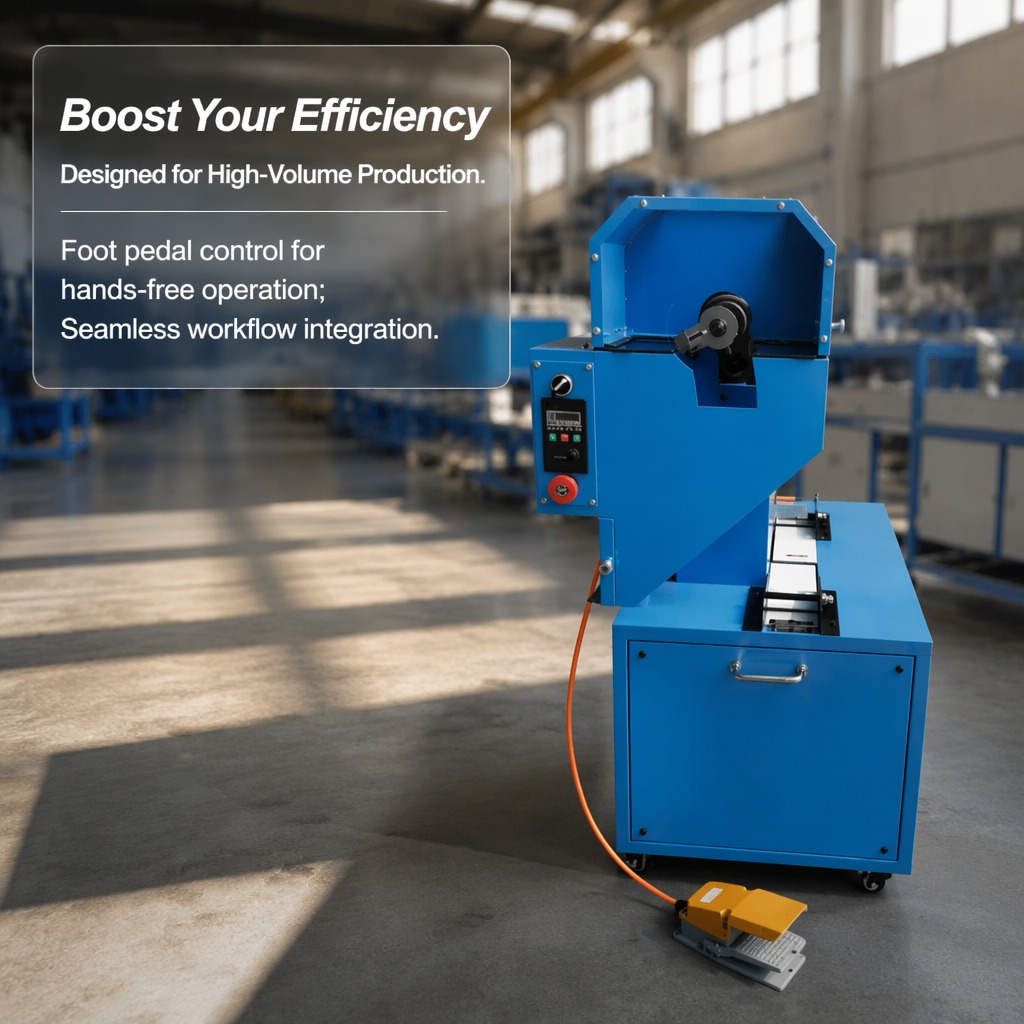

Product: Hose Cutting and Skiving Machine (Dust-Free Type) Model: QB-51

Key Specifications:

• Hose ID Range: 1/8" – 2" (4SN)
• Skiving Mold: 10 Sets
• Voltage / Motor: 380V / 3KW or 220V / 4KW
• Saw Blade Material: HSS (High-Speed Steel)
• Cutting Speed: 2850 rpm/min (Adjustable)
• Double-edged Saw Blade: φ350 × 2.8mm
• Machine Dimensions: 780 × 560 × 1100 mm
• Net Weight: 110 KG
• Internal Skiving Mold: Optional

Features:

• Integrated 2-in-1 design combining hose cutting and skiving functions — saves equipment cost and workspace
• Dust-free operation system ensures a clean working environment, protecting operator health
• Adjustable rotation speed to suit different hose materials and sizes for optimal cutting performance
• No knife distance adjustment required — significantly reduces setup time and simplifies operation
• Two power configurations available: 380V/3KW for industrial use, 220V/4KW for standard workshop power
• HSS double-edged blade (φ350×2.8mm) delivers clean, precise cuts at 2850 rpm/min
• 10 sets of skiving molds covering full range 1/8"–2" 4SN hoses
• Internal skiving mold available as optional accessory
• Sturdy construction at 110KG for stable operation under heavy-duty use

Application: Designed for hydraulic hose assembly production lines requiring both cutting and skiving operations. Ideal for hydraulic hose manufacturers, construction equipment maintenance facilities, and industrial hose workshops where clean working environment and high efficiency are priorities.
